12" Cable Puller Sheave, Hook, Wire | Capacity 6500lb | Staten Tools
👀
[COUNT] People viewed this product recently.
Description

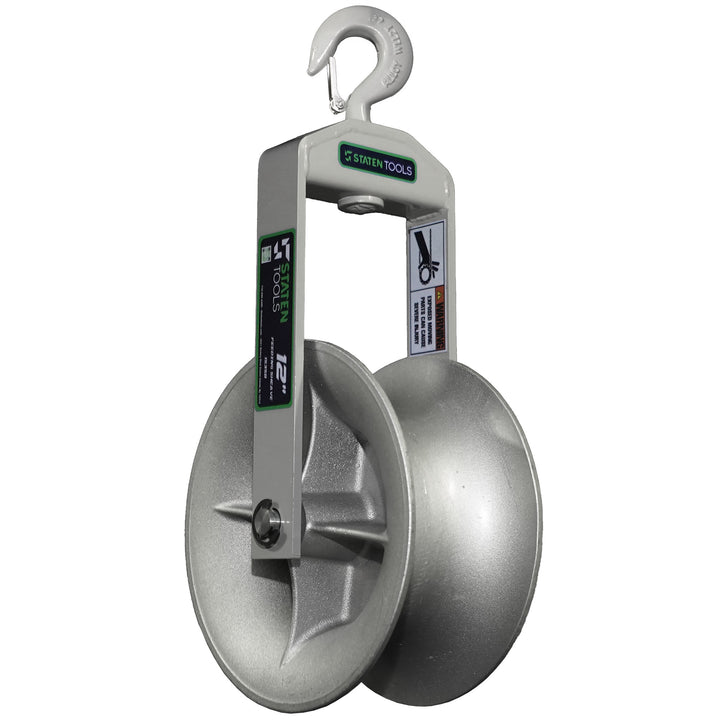

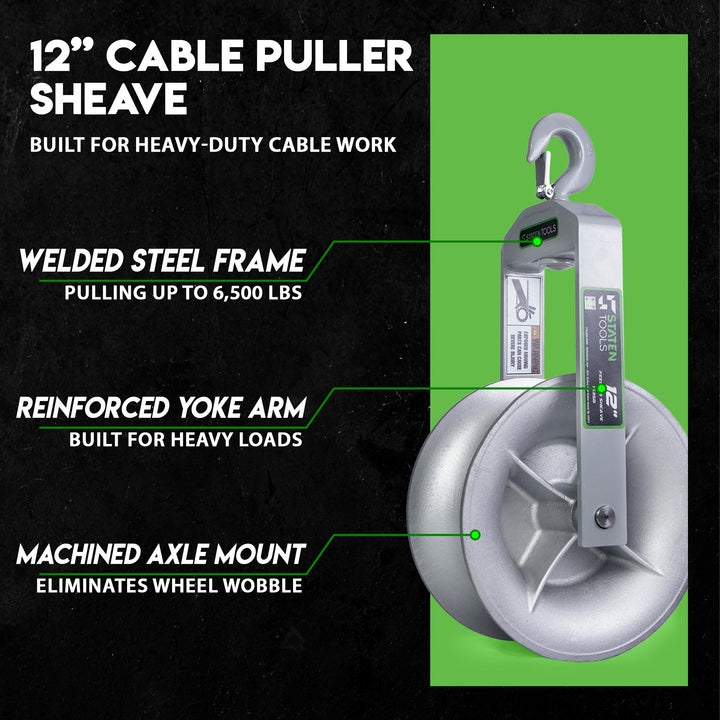

Cable Puller Sheave, Hook, 12 In
- Features Self-Lubricating Bearings, Strong Welded Frames
- Material Aluminum Alloy Roller with Bearings, Steel
- Includes 2) Sheave Bushings, (2) Sheave Pin Clips, Sheave, Sheave Pin, Yoke Frame
- For Use With Any Cable Puller
- Max. Capacity 6500 lb
OFFICIALLY IN STOCK!
12" Cable Puller Sheave, Hook, Wire | Capacity 6500lb | Staten Tools
$224.99
Feature
Winch Load Rating Table
Maximum safe working loads by pull angle
Load Rating Calculator
degrees
15°
Maximum Load Rating
6,500 lb
100% of maximum capacity
Optimal angle - highest capacity with minimal side loading
Reference Values
15°
6,500 lb
30°
5,050 lb
45°
3,550 lb
60°
2,900 lb
75°
2,600 lb
90°
3,500 lb
Key Insights
6,500 lb
Maximum Capacity
at 15° angle
2,600 lb
Minimum Capacity
at 75° angle
60%
Capacity Loss
from 15° to 75°
⚠️
Safety Notice
Always operate within specified load limits. Consider dynamic loading, shock loads, and safety factors when determining actual working loads.
